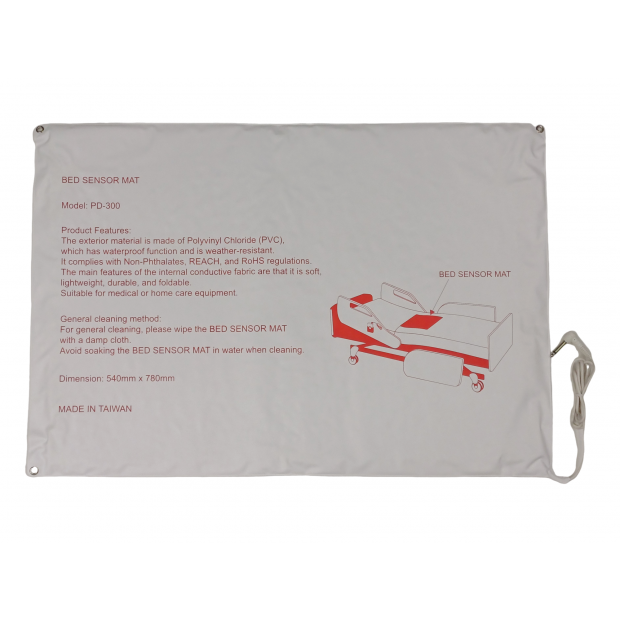

PD-300 BED SENSOR MAT
》General specifications：
Material properties
Surface material
Polyvinyl Chloride ( PVC )
Conductive layer
Conductive fabric
Features
Comply with EN71
Weather-resistant, Flame-resistant.
Color
Color
Contact
Normal open ( N.O. )
Plug
6.3mm L type mono plug
Wire Length
58"
Contact Rating
<0.5A @ 3-30 VDC
Operation Temperature
-10˚C Min to +60˚C Max.
Specially Features
Anti-pull function
Dimension
540mm x 780mm x 5mm
Maintenance
Use a damp cloth to wipe the surface,
Mat can not wash in water.
Uses
Control equipment, Medical care.
PD-300 BED SENSOR MAT
