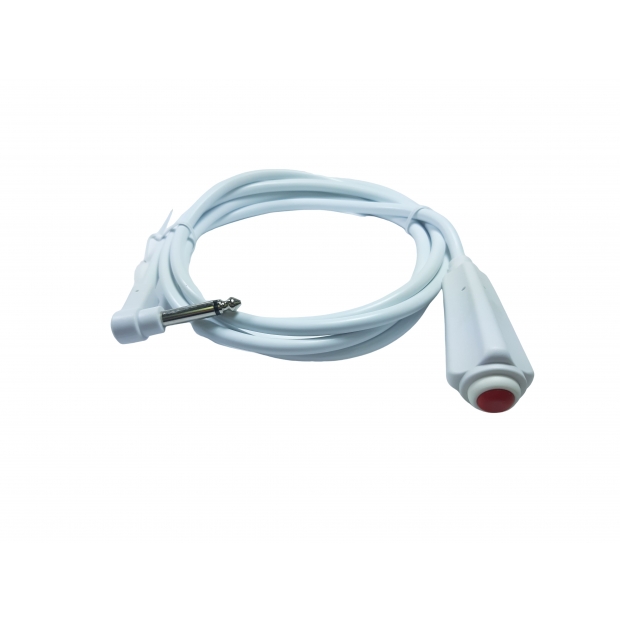

OP-160 Hand-Held Extension Button
》General specifications：
Button switch electrical characteristics
Circuit：PUSH ON
Rating：AC 125V 3A, AC 250V 1A
Contact Resistance ﹝max﹞：≦20mΩ ( Initial )
Insulation Resistance﹝min﹞：≧DC 500V 100MΩ ( Initial )
Withstand VOL.：AC 1,000V 1Minute ( Initial )
Life Cycle﹝max﹞：50,000 Cycles
Waterproof：IPX7
Color Of Button：Red
PVC Jacketed Cable
Length：6Feet, Jacket：OD 6.00±0.10mm, Color：White
Conductors：24 AWG 40/ 0.08mm +250D Copper strained wire
Insulation：80℃ 300V VW-1 SR- PVC
Audio Plug
6.3mm, 90∘Mono Plug
Operating temperature
-25℃~ +85℃
OP-160 Hand-Held Extension Button
